Sagola launches its new line of automatic spray guns, the V 4000. All the quality standards of its predecessor the 4041 are kept, but adding new features. The perfect tool for high demand automatic lines projects in terms of finish quality, robustness and durability.
- Size reduction: A size reduction that improves the manageability and consequently, the access to complex shapes parts.
- Robot version (DMR/QCR): Automated fan size regulation. An air inlet replaces the manual regulator wheel.
- Abrasives versions: Tungsten Carbide nozzles and needles to spray abrasive fluids. Great hardness and resistance to abrasion.
Base (QCM/QCR) Version
Same features as the standard version (DMM/DMR) but including a base that simplifies maintenance and cleaning work. Quick disassembly system that allows the repositioning of the gun in the same position keeping the setup parameters.
- Large ergonomic knob to ensure a quick and easy fixing of the gun to the base.
- Hold system with positioning fit.
- Fan regulator located in the base for a quick replacement of the gun keeping the setup parameters.
- Manufactured in accordance with the normative EN 1953:2013 Ap. 5.2.4.
Available in both standard and base versions. Automated fan pattern regulation. The manual regulation wheel is replaced by an air inlet.
All inlets, both hydraulic and pneumatic, have been located on the same side of the gun or the base to facilitate the setup of the painting line.
Connections
All inlets, both hydraulic and pneumatic, have been located on the same side of the gun or the base to facilitate the setup of the painting line.
Robust forged anodized aluminum body
High protection against corrosion.
Metal to Metal Technology
Absence of gaskets, O-rings or plastic parts in the fluid area.
Self-adjusting packing gland
High durability self-adjusting packing gland.
Connections
All connections, both hydraulic and pneumatic on the same side of the gun.
High durability operating piston
Designed and tested for carrying out continuous jobs.
Anodized aluminum air caps
. Great resistance and durability. Suitable for aggressive environments.
| Air Cap X765 | |||
|---|---|---|---|
|
1.40 | Finishes enamels wood varnishes metal | |
| 1.20 | Basecoat finishes metallic, pearl plastic and automotive industry | ||
| 1.00 | Fluid products wood dyes textile, tanned teflón | ||
| 0.80 | Fluid products wood dyes textile, tanned teflón | ||
| Air Cap X777 | |||
|---|---|---|---|
|
1.00 | Basecoat finishes metallic, pearl plastic and automotive industry | |
| Air Cap 797 | |||
|---|---|---|---|
|
1.00 | Hs clearcoat single stage hs lacquers plastic, wood and automotive industry | |
| 1.20 | Hs clearcoat single stage hs lacquers plastic, wood and automotive industry | ||
| Air Cap X20A | |||
|---|---|---|---|
|
1.20 | Coles adhesives | |
| 1.40 | Coles adhesives | ||
| 1.80 | Coles adhesives | ||
| Air Cap X96 | |||
|---|---|---|---|
|
1.40 | Industrial finishes medium pressure gravity painted system | |
| 1.80 | Industrial finishes medium pressure gravity painted system | ||
| Air Cap X Super VIT | |||
|---|---|---|---|
|
1.00 | Fluid products wood dyes textile, tanned teflón | |
| 1.20 | Finishes enamels wood varnishes metal | ||
| 1.40 | Primers background pore cover wood and metal industry | ||
| Air Cap XT01B | |||
|---|---|---|---|
|
0.80 | Fluid products wood dyes textile, tanned teflón | |
| 1.00 | Basecoat finishes metallic, pearl plastic and automotive industry | ||
| 1.20 | Primers background pore cover wood and metal industry | ||
| 1.40 | Coles adhesives | ||
| 1.40 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | ||
| Air Cap XT03 | |||
|---|---|---|---|
|
1.00 | Basecoat finishes metallic, pearl plastic and automotive industry | |
| 1.20 | HS clearcoat single stage hs lacquers plastic, wood and automotive industry | ||
| 1.40 | Primers background pore cover wood and metal industry | ||
| 1.40 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | ||
| Air Cap X3030 | |||
|---|---|---|---|
|
1.20 | Primers background pore cover wood and metal industry | |
| 1.40 | Coles adhesives | ||
| Air Cap 500 | |||
|---|---|---|---|
|
0.80 | Fluid products wood dyes textile, tanned teflon | |
| 1.00 | Basecoat finishes metallic, pearl plastic and automotive industry | ||
| 1.20 | Coles adhesives | ||
| 1.20 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | ||
| Air Cap 600 | |||
|---|---|---|---|
|
0.80 | Fluid products wood dyes textile, tanned teflon | |
| 1.00 | Basecoat finishes metallic, pearl plastic and automotive industry | ||
| 1.20 | Finishes enamels wood varnishes metal | ||
| 1.40 | Coles adhesives | ||
| 1.20 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | ||
| 1.40 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | ||
| Air Cap 78 | |||
|---|---|---|---|
|
1.40 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | |
| Air Cap 67 | |||
|---|---|---|---|
|
1.80 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | |
| Air Cap 64 | |||
|---|---|---|---|
|
2.20 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | |
| Air Cap 62 | |||
|---|---|---|---|
|
2.80 C.T. | Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic | |
| Weight DMM version | 915 g (2.01 lbs) |
| Weight DMR version | 987 g (2.17 lbs) |
| Weight QCM version | 1,240 g (2.73 lbs) |
| Weight QCR version | 1,318 g (2.90 lbs) |
| Dimensions DMM version | 164 x 45 x 104 mm 6.4 x 1.7 x 4.1" |
| Dimensions DMR version | 164 x 45 x 104 mm 6.4 x 1.7 x 4.1" |
| Dimensions QCM version | 164 x 45 x 174 mm 6.4 x 1.7 x 6.8" |
| Dimensions QCR version | 164 x 45 x 174 mm 6.4 x 1.7 x 6.8" |
| Inlet connection (Operation) | 4 mm (0.157") |
| Air inlet couplings | 4 mm (0.157") |
| Paint inlet coupling thread | BSP 1/4" M |
| Maximum air inlet pressure | 8 bar (116 psi) |
| Recommended maximum air pressure | 2 - 3 bar (29 - 36.2 psi) |
| Materials (contact with the product) | Stainless steel, POM, Teflon, Nylon and Tungsten Carbide. |
| Recommended application distance EPA | 18 - 20 cm 7 - 7.8" |
| Recommended application distance HVLP | 15 - 20 cm 5.9 - 7.8" |
| Recommended application distance Medium pressure | 20 - 25 cm (7.8 - 9.8") |
| Code | Version |
|---|---|
| 10250903 | Automatic Spraygun V4000 Dmm 1.20 [765] |
| 10250904 | Automatic Spraygun V4000 Dmm 1.40 [765] |
| 10250905 | Automatic Spraygun V4000 Dmm 0.80 [500] |
| 10250906 | Automatic Spraygun V4000 Dmm 1.00 [500] |
| 10250907 | Automatic Spraygun V4000 Dmm 1.20 [500] |
| 10250908 | Automatic Spraygun V4000 Dmm 0.80 [600] |
| 10250909 | Automatic Spraygun V4000 Dmm 1.00 [600] |
| 10250910 | Automatic Spraygun V4000 Dmm 1.20 [600] |
| 10250911 | Automatic Spraygun V4000 Dmm 1.40 [600] |
| 10250912 | Automatic Spraygun V4000 Dmm 0.80[XT01B] |
| 10250913 | Automatic Spraygun V4000 Dmm 1.00[XT01B] |
| 10250914 | Automatic Spraygun V4000 Dmm 1.20[XT01B] |
| 10250915 | Automatic Spraygun V4000 Dmm 1.40[XT01B] |
| 10250916 | Automatic Spraygun V4000 Dmm 1.00 [777] |
| 10250917 | Automatic Spraygun V4000 Dmm 1.00 [XT03] |
| 10250918 | Automatic Spraygun V4000 Dmm 1.20 [XT03] |
| 10250919 | Auto. Spraygun V4000 Dmm 1.00 [supervit] |
| 10250920 | Auto. Spraygun V4000 Dmm 1.20 [supervit] |
| 10250921 | Auto. Spraygun V4000 Dmm 1.40 [supervit] |
| 10250922 | Automatic Spraygun V4000 Dmm 1.20 [20] |
| 10250923 | Automatic Spraygun V4000 Dmm 1.40 [20] |
| 10250924 | Automatic Spraygun V4000 Dmm 1.80 [20] |
| 10250925 | Automatic Spraygun V4000 Dmm 1.20 [797] |
| 10250926 | Automatic Spraygun V4000 Dmm 1.20 [3030] |
| 10250927 | Automatic Spraygun V4000 Dmm 1.40 [3030] |
| 10250928 | Automatic Spraygun V4000 Dmm 1.40 [96] |
| 10250929 | Automatic Spraygun V4000 Dmm 1.80 [96] |
| 10250935 | Auto.spraygun V4000 Dmm 1.20 [765] (11 |
| 10250936 | Auto.spraygun V4000 Dmm 1.40 [765] (11) |
| 10250937 | Auto.spraygun V4000 Dmm 1.20 [500] (11) |
| 10250938 | Auto.spraygun V4000 Dmm 1.40 [600] (11) |
| 10250939 | Auto.spraygun V4000 Dmm 1.40 [XT03] (11) |
| 10250940 | Auto.spraygun V4000 Dmm 1.80 [67] (11) |
| 10250941 | Auto.spraygun V4000 Dmm 2.20 [64] (11) |
| 10250942 | Auto.spraygun V4000 Dmm 2.80 [62] (11) |
| 10250950 | Automatic Spraygun V4000 Qcm 0.80 [765] |
| 10250951 | Automatic Spraygun V4000 Qcm 1.00 [765] |
| 10250952 | Automatic Spraygun V4000 Qcm 1.20 [765] |
| 10250953 | Automatic Spraygun V4000 Qcm 1.40 [765] |
| 10250954 | Automatic Spraygun V4000 Qcm 0.80 [500] |
| 10250955 | Automatic Spraygun V4000 Qcm 1.00 [500] |
| 10250956 | Automatic Spraygun V4000 Qcm 1.20 [500] |
| 10250957 | Automatic Spraygun V4000 Qcm 0.80 [600] |
| 10250958 | Automatic Spraygun V4000 Qcm 1.00 [600] |
| 10250959 | Automatic Spraygun V4000 Qcm 1.20 [600] |
| 10250960 | Automatic Spraygun V4000 Qcm 1.40 [600] |
| 10250961 | Automatic Spraygun V4000 Qcm 0.80 [XT01B |
| 10250962 | Automatic Spraygun V4000 Qcm 1.00[XT01B] |
| 10250963 | Automatic Spraygun V4000 Qcm 1.20[XT01B] |
| 10250964 | Automatic Spraygun V4000 Qcm 1.40[XT01B] |
| 10250965 | Automatic Spraygun V4000 Qcm 1.00 [777] |
| 10250966 | Automatic Spraygun V4000 Qcm 1.00 [XT03] |
| 10250967 | Automatic Spraygun V4000 Qcm 1.20 [XT03] |
| 10250968 | Auto. Spraygun V4000 Qcm 1.00 [supervit] |
| 10250969 | Auto. Spraygun V4000 Qcm 1.20 [supervit] |
| 10250970 | Auto. Spraygun V4000 Qcm 1.40 [supervit] |
| 10250971 | Automatic Spraygun V4000 Qcm 1.20 [20] |
| 10250972 | Automatic Spraygun V4000 Qcm 1.40 [20] |
| 10250973 | Automatic Spraygun V4000 Qcm 1.80 [20] |
| 10250974 | Automatic Spraygun V4000 Qcm 1.20 [797] |
| 10250975 | Automatic Spraygun V4000 Qcm 1.20 [3030] |
| 10250976 | Automatic Spraygun V4000 Qcm 1.40 [3030] |
| 10250977 | Automatic Spraygun V4000 Qcm 1.40 [96] |
| 10250978 | Automatic Spraygun V4000 Qcm 1.80 [96] |
| 10250985 | Auto. Spraygun V4000 Qcm 1.20 [765] (11) |
| 10250986 | Auto. Spraygun V4000 Qcm 1.40 [765] (11) |
| 10250987 | Auto. Spraygun V4000 Qcm 1.20 [500] (11) |
| 10250988 | Auto. Spraygun V4000 Qcm 1.40 [600] (11) |
| 10250989 | Auto. Spraygun V4000 Qcm 1.40 [XT03](11) |
| 10250990 | Auto. Sraygun V4000 Qcm 1.80 [67] (11) |
| 10250991 | Auto. Spraygun V4000 Qcm 2.20 [64] (11) |
| 10250992 | Auto. Spraygun V4000 Qcm 2.80 [62] (11) |
| 10251001 | Automatic Spraygun V4000 Dmr 0.80 [765] |
| 10251002 | Automatic Spraygun V4000 Dmr 1.00 [765] |
| 10251003 | Automatic Spraygun V4000 Dmr 1.40 [765] |
| 10251004 | Automatic Spraygun V4000 Dmr 0.80 [500] |
| 10251005 | Automatic Spraygun V4000 Dmr 1.00 [500] |
| 10251006 | Automatic Spraygun V4000 Dmr 1.20 [500] |
| 10251007 | Automatic Spraygun V4000 Dmr 0.80[XT01B] |
| 10251008 | Automatic Spraygun V4000 Dmr 1.40[XT01B] |
| 10251009 | Automatic Spraygun V4000 Dmr 1.00 [797] |
| 10251010 | Automatic Spraygun V4000 Dmr 1.20 [797] |
| 10251011 | Automatic Spraygun V4000 Dmr 1.20 [20] |
| 10251012 | Automatic Spraygun V4000 Dmr 1.40 [20] |
| 10251013 | Automatic Spraygun V4000 Dmr 1.20 [600] |
| 10251014 | Automatic Spraygun V4000 Dmr 1.40 [600] |
| 10251015 | Automatic Spraygun V4000 Dmr 1.20 [3030] |
| 10251016 | Automatic Spraygun V4000 Dmr 1.40 [3030] |
| 10251020 | Automatic Spraygun V4000 Dmr 1.20 [765] |
| 10251021 | Automatic Spraygun V4000 Dmr 1.40 [765] |
| 10251022 | Automatic Spraygun V4000 Dmr 1.20 [500] |
| 10251023 | Automatic Spraygun V4000 Dmr 1.20 [600] |
| 10251024 | Automatic Spraygun V4000 Dmr 1.40 [600] |
| 10251025 | Automatic Spraygun V4000 Dmr 1.20[XT01B] |
| 10251026 | Automatic Spraygun V4000 Dmr 1.40 [78] |
| 10251027 | Automatic Spraygun V4000 Dmr 1.80 [67] |
| 10251028 | Automatic Spraygun V4000 Dmr 2.20 [64] |
| 10251029 | Automatic Spraygun V4000 Dmr 2.80 [62] |
| 10251050 | Automatic Spraygun V4000 Qcr 0.80 [765] |
| 10251051 | Automatic Spraygun V4000 Qcr 1.00 [765] |
| 10251052 | Automatic Spraygun V4000 Qcr 1.40 [765] |
| 10251053 | Automatic Spraygun V4000 Qcr 0.80 [500] |
| 10251054 | Automatic Spraygun V4000 Qcr 1.00 [500] |
| 10251055 | Automatic Spraygun V4000 Qcr 1.20 [500] |
| 10251056 | Automatic Spraygun V4000 Qcr 0.80[XT01B] |
| 10251057 | Automatic Spraygun V4000 Qcr 1.40[XT01B] |
| 10251058 | Automatic Spraygun V4000 Qcr 1.00 [797] |
| 10251059 | Automatic Spraygun V4000 Qcr 1.20 [797] |
| 10251060 | Automatic Spraygun V4000 Qcr 1.20 [20] |
| 10251061 | Automatic Spraygun V4000 Qcr 1.20 [20] |
| 10251062 | Automatic Spraygun V4000 Qcr 1.20 [600] |
| 10251063 | Automatic Spraygun V4000 Qcr 1.40 [600] |
| 10251064 | Automatic Spraygun V4000 Qcr 1.20 [3030] |
| 10251065 | Automatic Spraygun V4000 Qcr 1.40 [3030] |
| 10251070 | Automatic Spraygun V4000 Qcr 1.20 [765] |
| 10251071 | Automatic Spraygun V4000 Qcr 1.40 [765] |
| 10251072 | Automatic Spraygun V4000 Qcr 1.20 [500] |
| 10251073 | Automatic Spraygun V4000 Qcr 1.20 [600] |
| 10251074 | Automatic Spraygun V4000 Qcr 1.40 [600] |
| 10251075 | Automatic Spraygun V4000 Qcr 1.40[XT01B] |
| 10251076 | Automatic Spraygun V4000 Qcr 1.40 [78] |
| 10251077 | Automatic Spraygun V4000 Qcr 1.80 [67] |
| 10251078 | Automatic Spraygun V4000 Qcr 2.20 [64] |
| 10251079 | Automatic Spraygun V4000 Qcr 2.80 [62] |
| 10250902 | Automatic Spraygun V4000 Dmm 1.00 [765] |
| 10250901 | Automatic Spraygun V4000 Dmm 0.80 [765] |
Pistola automática V4000 series

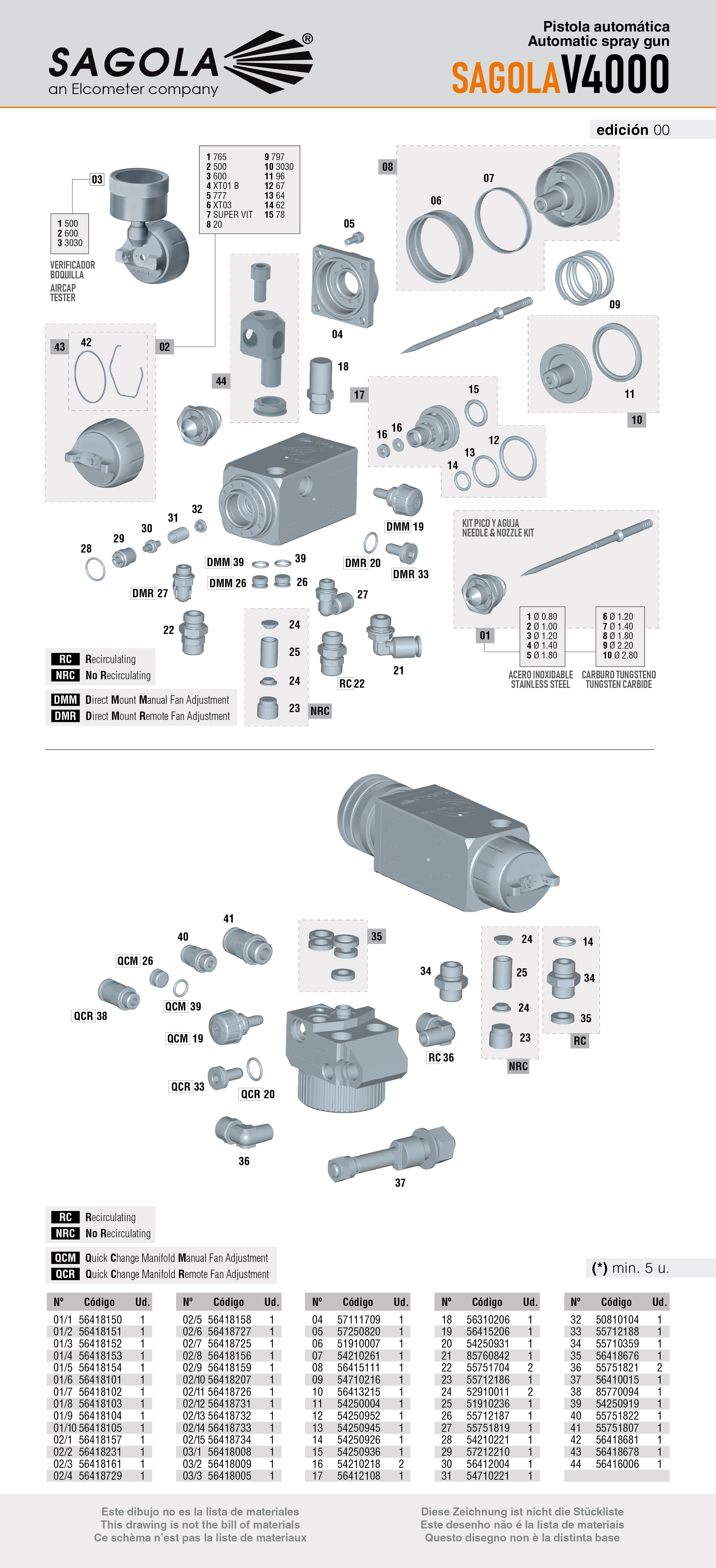

Exploded view
V 4000 automatic Information Sheet
Product information
